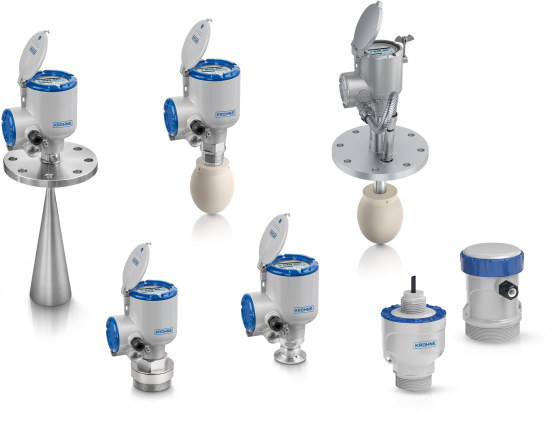

Radar (FMCW) level transmitters

Non-contact level measurement of liquids, pastes, granulates, powders and other solids

  • Measuring distances up to 100 m / 328 ft
  • Different antenna options, e.g. for corrosive or abrasive media, high pressure or temperature and applications with agitators
  • Also suitable for hazardous areas, Functional Safety (SIL) or hygienic applications

Filter

11 products
Industrial requirements
Communication
Configurable

New

OPTIWAVE 1520

Radar (FMCW) level transmitter for basic liquid and solid applications

  • Cost-effective non-contact level measurement in tanks (up to 5 bar / 72.5 psi), water and wastewater basins, pumping stations, small granular silos, etc.
  • Compact and robust 80 GHz radar with flush-mounted PVDF Lens antenna, waterproof (IP68)
  • Measuring range: 0…10 m / 32.8 ft
  • 2-wire 4…20 mA HART®7; user-friendly commissioning via Bluetooth® using the OPTICHECK Level Mobile app
New

OPTIWAVE 1540

Radar (FMCW) level transmitter for liquid chemicals, solids and open channel flow

  • Cost-effective non-contact level measurement in IBCs, chemical tanks (up to 5 bar / 72.5 psi), (waste)water applications, granular silos, etc.; meets high accuracy requirements, designed as level and flow transmitter for open channel measurement
  • Compact and robust 80 GHz radar with flush-mounted PVDF Lens antenna, waterproof (IP68)
  • Measuring range: 0…15 m / 49.2 ft
  • 2-wire 4…20 mA HART®7; user-friendly commissioning via Bluetooth® using the OPTICHECK Level Mobile app

OPTIWAVE 1400

Radar (FMCW) level transmitter for liquids in water and wastewater applications

  • Continuous, non-contact level measurement in tanks, pumping stations, open channels etc.
  • Robust stainless steel (316L) design , waterproof (IP66/68 / NEMA 4X/6)
  • 24 GHz radar, PP Drop antenna
  • Measuring range: 0…20 m / 66 ft

OPTIWAVE 3500

Radar (FMCW) level transmitter for liquids with hygienic requirements

  • Continuous, non-contact level measurement in small and narrow vessels, small storage tanks and agitated tanks
  • 80 GHz radar, flush-mounted Lens antenna
  • Measuring range: 0…50 m / 164 ft
  • -40…+150°C / +302°F; -1…25 barg / -14.5…362 psig

OPTIWAVE 5400

Radar (FMCW) level transmitter for liquids in basic process applications

  • Continuous, non-contact level measurement in closed tanks or in the open air
  • 24 GHz radar, Horn or Drop antennas
  • Measuring range: 0…100 m / 328 ft
  • -50…+130°C / -58…+266°F; -1…16 barg / -14.5…232 psig

OPTIWAVE 6400

Radar (FMCW) level transmitter for solids from granulates to rocks

  • Continuous, non-contact level measurement in/on silos, stockpiles, conveyor belts etc.
  • 24 GHz radar, Horn or Drop antennas
  • Measuring range: 0…100 m / 328 ft
  • -50…+130°C / +266°F; -1…16 barg / -14.5…232 psig

OPTIWAVE 6500

Radar (FMCW) level transmitter for powders and dusty atmosphere

  • Continuous, non-contact level measurement in high and narrow silos, hoppers or containers
  • 80 GHz radar, flush-mounted Lens antenna
  • Measuring range: 0…100 m / 328 ft
  • -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig

OPTIWAVE-M 7400

Radar (FMCW) level transmitter for liquids and solids in the marine industry

  • Continuous, non-contact cargo level measurement
  • 24 GHz radar, Horn or Drop antenna
  • Redundant ullage indication with local display on deck
  • Closed tank cleaning and service of all components

OPTIWAVE 7400

Radar (FMCW) level transmitter for agitated and corrosive liquids

  • Continuous, non-contact level measurement in harsh environments
  • 24 GHz radar, Horn or Drop antennas
  • Measuring range: 0…100 m / 328 ft
  • -50…+200°C / -58…+392°F, up to +700°C / +1292°F in non-ex applications; -1…100 barg / -14.5…1450 psig (higher on request)

OPTIWAVE-M 7500

Radar (FMCW) level transmitter for liquids and solids in the marine industry

  • Continuous, non-contact cargo level measurement
  • 80 GHz radar, Lens antenna (flush-mounted)
  • Very small beam angle for narrow tanks of various heights and shapes
  • Redundant ullage indication with local display on deck

OPTIWAVE 7500

Radar (FMCW) level transmitter for liquids in narrow tanks with internal obstructions

  • Continuous, non-contact level measurement in small and narrow tanks with agitators as well as long nozzles
  • 80 GHz radar, flush-mounted Lens antenna
  • Measuring range: 0…100 m / 328 ft
  • -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig
